LUXMESH™ LED LATTICE
LUXMESH™ LATTICE
Versatile backlighting for large-format applications

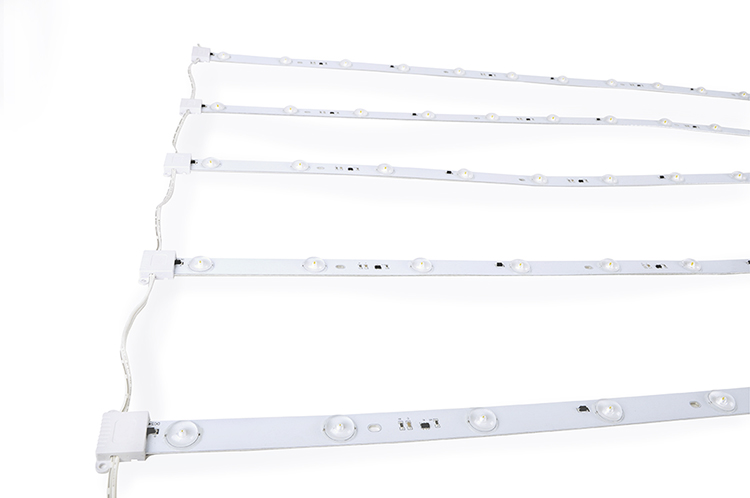

The original LUXMESH™ Lattice provides a flexible and scalable solution for illuminating large-format graphics and architectural surfaces. Available in multiple LED stick sizes that can be linked horizontally or vertically, LUXMESH Lattice can be configured to accommodate a wide range of project dimensions and layouts.
Best for: large-format fabric light boxes, signage, ceilings and walls, and applications where layout flexibility and scalable coverage are the priority.
LUXMESH™ is a grand format lighting solution with an unlimited max roll length and a strong color rendering index rated at 80+. With outstanding even lighting distribution, LUXMESH™ will provide a clean and consistent look to any backlighting application. Featuring a wide beam angle, energy-saving design and consistent lighting output, LUXMESH™ is the designer’s choice for optimized backlighting solutions. Fully adjustable to meet your application’s unique needs, mix and match the standard module sticks and combine them to the length you need for a custom fit that will provide full coverage without hot spots. Options to mount on the ceiling or wall provide unlimited design possibilities. The practical and creative applications with LUXMESH™ are truly limitless.
Product Specification
Safety Standard
LED Module
- LEDs per piece 3, 6, & 12 pc/stick
- LED Node Size 3030
- PCB 3/16″ (w) x 9/32″ (h) [20mm (w) x 7mm (h)]
- LED Pitch 3-5/32″ (80mm)
- Stick-to-Stick Pitch 6″ (152mm)
- No. of Sticks per Roll 10 Sticks
- Max. Roll Length Unlimited
- Ambient Temperature -4°F -+176°F (-20-+80°C)
- IP Rating IP60*
- Environment Indoor applications
*EXTERIOR applications (IP 65) available upon request
Mounting
- Method
- Screws or
- Double-sided foam tape
- Optimal Cabinet Depth** 3″-5″ (76mm-127mm)
**Optimal depth to prevent hot spots
Light Source
- LED Chip Nichia 3030 LED
- Wide Beam Angle 160° with Optical Lens
- Life Expectancy 50,000+ hours
- Color Rendering CRI 80+
- Standard Color Cool White (6500K)
- Available Colors
- Neutral White (4100K)
- Daylight (5300K)
- Dimmable Compatible with pulse-width modulation dimming (PWM) & 0-10V dimming
- UL Listed E477011
Power Supply
- Input Voltage 24 Vdc constant current
- Wire Size 20 AWG 2 Wire
- Please use only with Class 2 power supply
- Connector Type
- Molex
- Hardwire
LUXMESH™ is LEDCONN’s new lattice lighting system made specifically for grand format backlighting applications. This product can also accommodate simple curves for unique shapes and designs. LEDCONN’s LUXMESH™ product is the perfect lighting solution for every designer’s toolbox. LUXMESH™ is an energy-efficient, long-lasting lighting solution with an LED lifespan of 50,000+ hours of dependable performance.
LUXMESH’s large format illumination capabilities are ideal for fabric light boxes, sign cabinet backlighting, ceiling and wall backlighting, and many more.
Product Features
Strong Color Rendering
Wide Beam Angle
Outstanding Brightness
80% Energy Efficient
Even Lighting
Custom Roll Lengths
Long LED Lifespan
Custom Colors
Constant Voltage – 24V
Contours For Simple Curves
Effective Backlighting Solution
Certifications:
Applications:
- Sign Cabinet Backlighting
- Fabric Light Box Backlighting
- Ceiling & Wall Backlighting
- Large Format Illumination
- Simple Curved Applications
- …And Many More!
